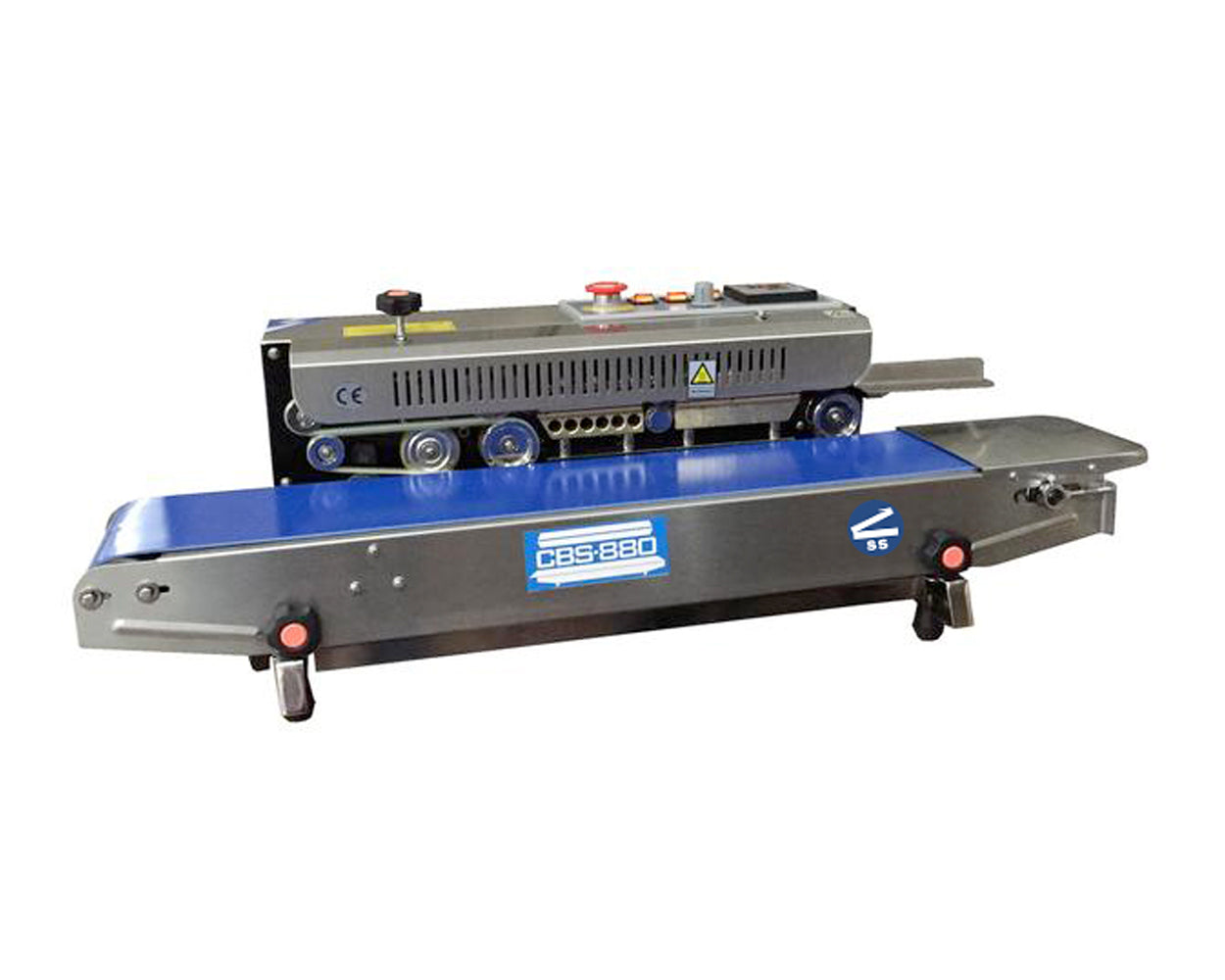

Continuous Horizontal Band Sealer Machine Seal 30 Bags in Under 1 Minute

The Continuous Horizontal Band Sealer is suitable for sealing all types of plastic materials and bags. Band sealers are used in a variety of industries such as medical, food and cosmetics. With the correct handler, this machine can seal 20-30 6" inch wide bags in under a minute. FEATURES

• Durable stainless steel
• Digital Counter - optional feature ( +$115.00 )
• Easy to operate - minimal operator training
• Fast warm up time
• Seals any thermoplastic material including PE, PP, and laminates
• Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality
• Fully adjustable conveyor
• Motorized rubber conveyor with speed control

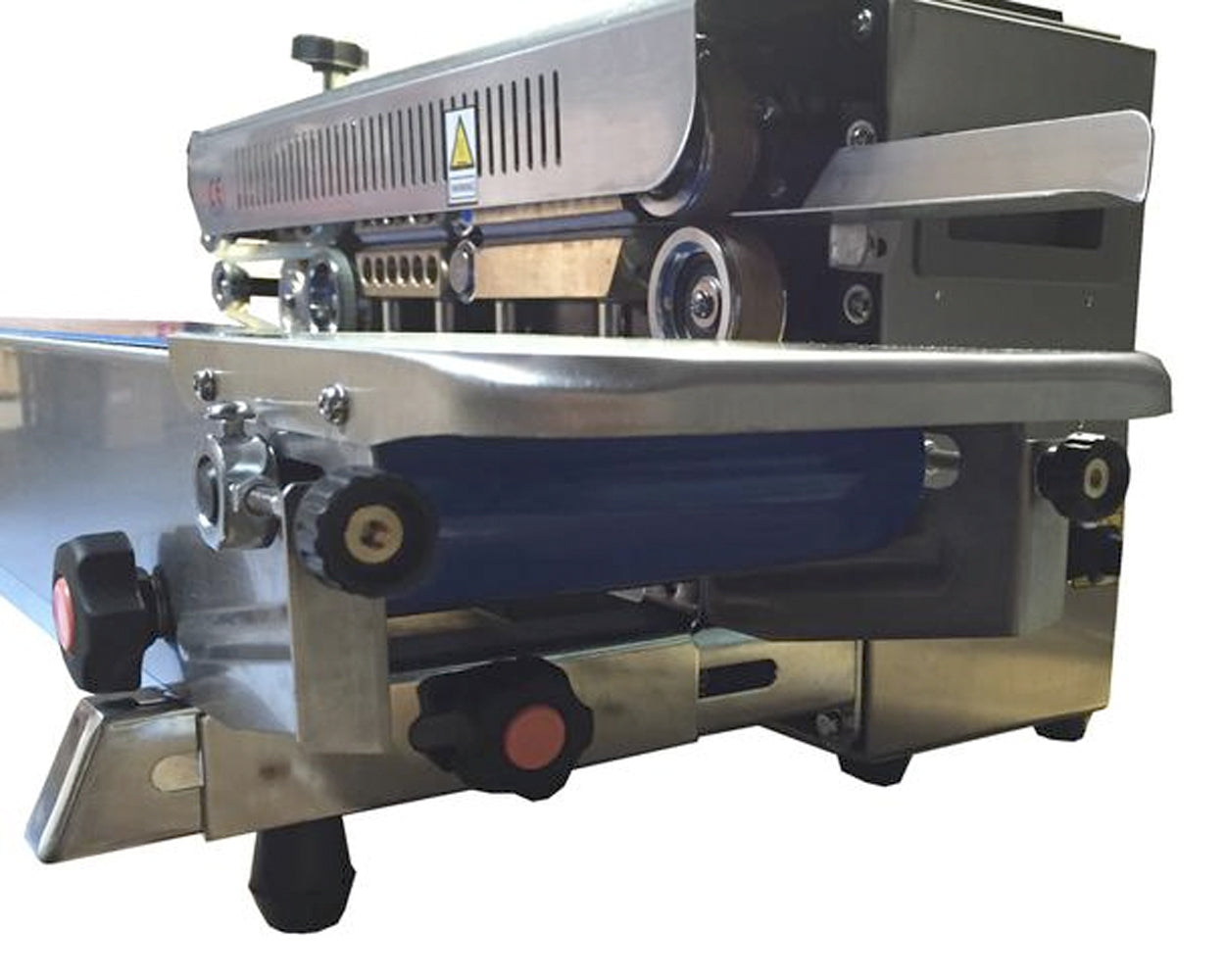

• Knurled pressure rolls with variable pressure adjustment
• One pair each of cooling and heating blocks
• Sealing method - constant / direct heat
• Unit feeds right to left
• Equipped with an emergency stop button
• Can easily be converted to a vertical configuration with an optional converting kit

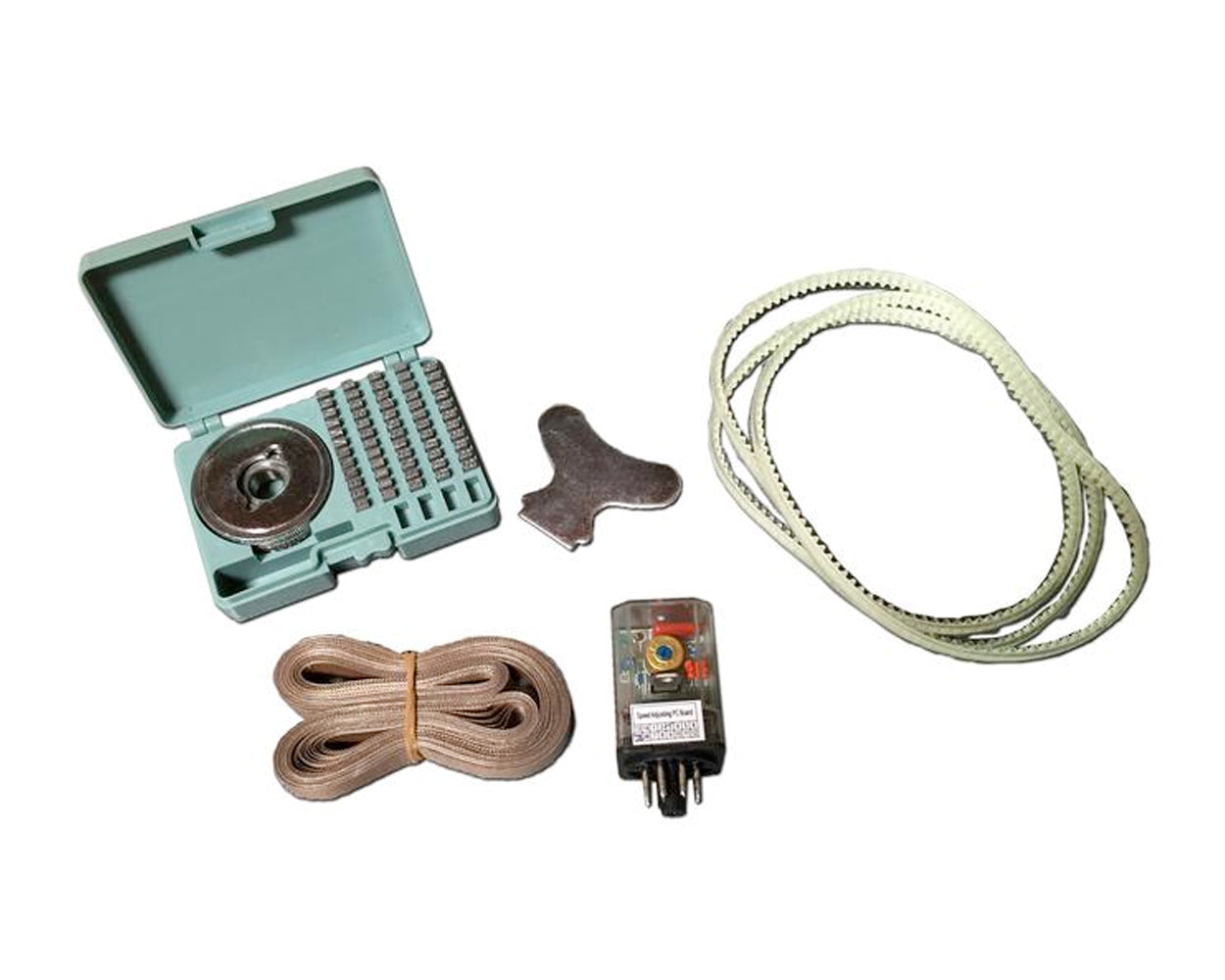

• Spare parts include: PC Board, PTFE sealing belt, wheel belt, tools, and type set

DIMENSIONS

• Box Length: 35.4”
• Box Width: 17.7”
• Box Height: 15”
• Machine Height: 10”
• Machine Length: 22”
• Machine Width: 15”
• Seal Length: 18”

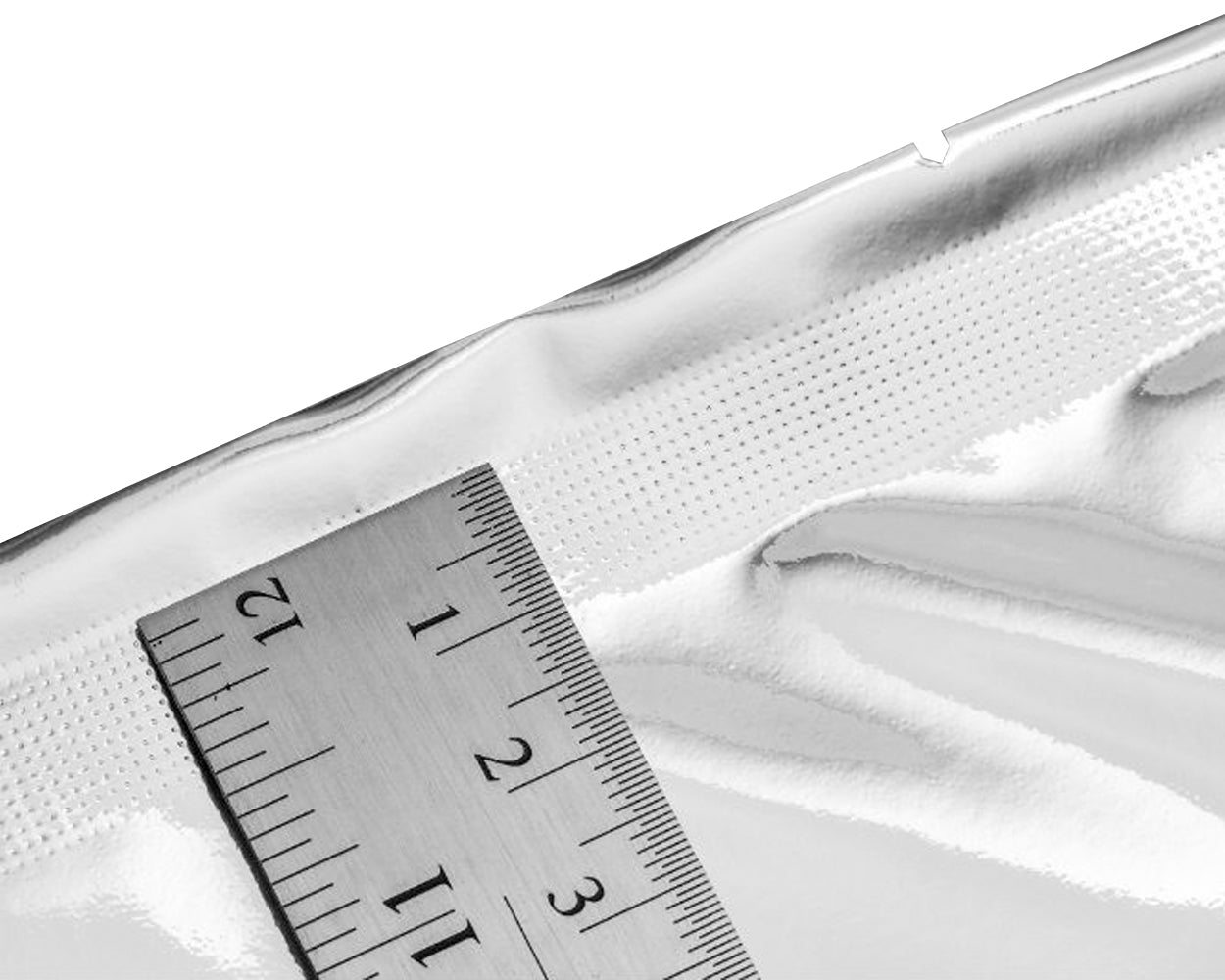

• Seal Width: 8MM
• Seal Thickness: 2”
• Tray Height: 6”
• Tray Length: 33”
• Tray Width: 6”

-

-
